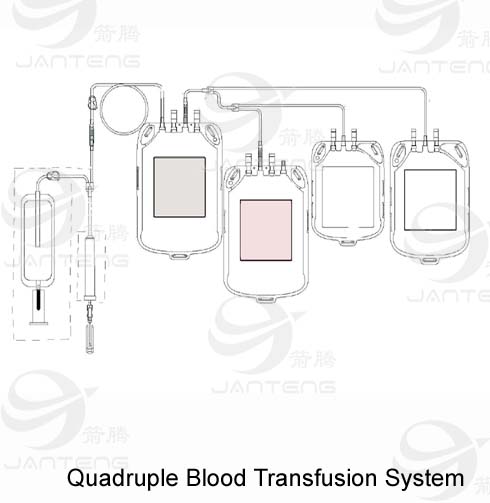

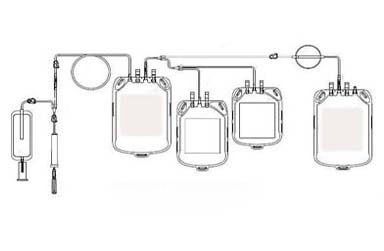

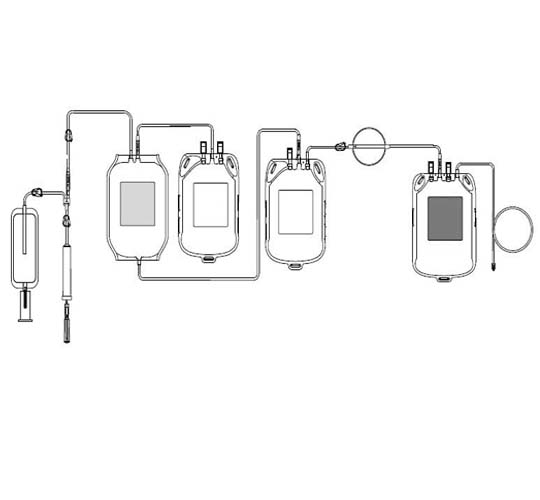

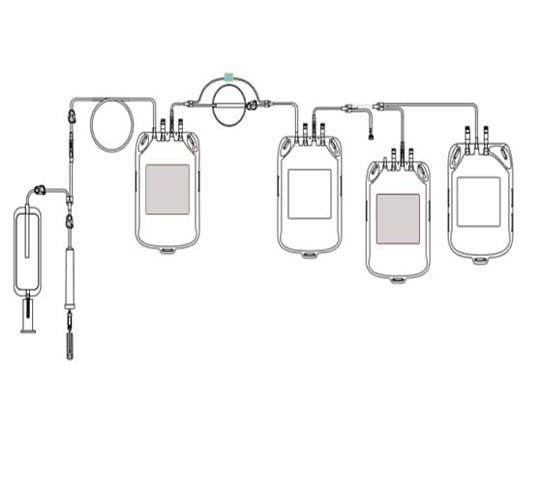

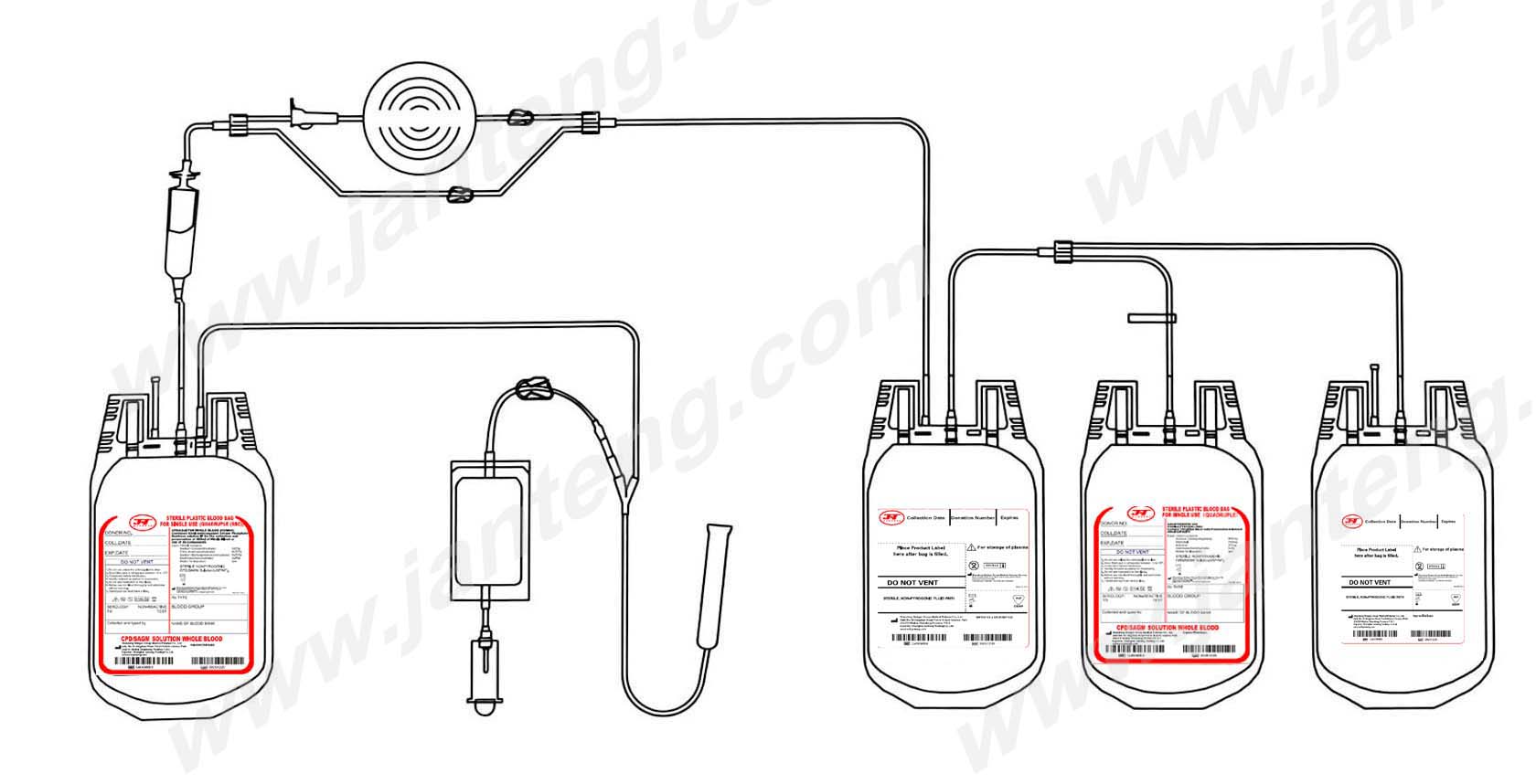

Quadruple blood bag with in-line leukocyte filter system

 • Sterile, pyrogen free, non toxic , ensure external sterility of the bags,

•  Slit present at the bottom of the bag  is satisfactory to hang the blood bag during transfusion.

•  The plastic blood bag has a shelf life of minimum 2 years.

•   Individual blood bag is packed in a PET/PE pouch;

    3--5 sets are packed in an compound aluminum foil pack.

  These foil packs are packed in the corrugated carton which indicatesclearly and legibly the manufacturer’s

name and address, product name, batchnumber, quantity, manufacturing and expiry date, gross and net weight

and consignee’s name address.

•  Storage of human blood and collection of blood volume is 450ml, 500ml.

•  No risk of contamination and airembolism [ closed system ] with all leak proof seals.
DESIGN

•  Slit on both sides of the bags are enough to accommodate 5-10 ml volume test tubes.

•  The capacity of the bag is enough to prevent any rupture of the bag from the seam when it is filled to the requisite volume of blood.

Filter of leukocyte

High leukocyte removal: Residual leukocye < 1X10e6/unit

High red cell recovery (RC series filters) > 90.3%

High platelet recovery(PL series filters): > 91.8%

Optional performance at bed side and in the laboratory

100% removal of micro-aggregates

Configurations for a variety of requirements.

Easy to use

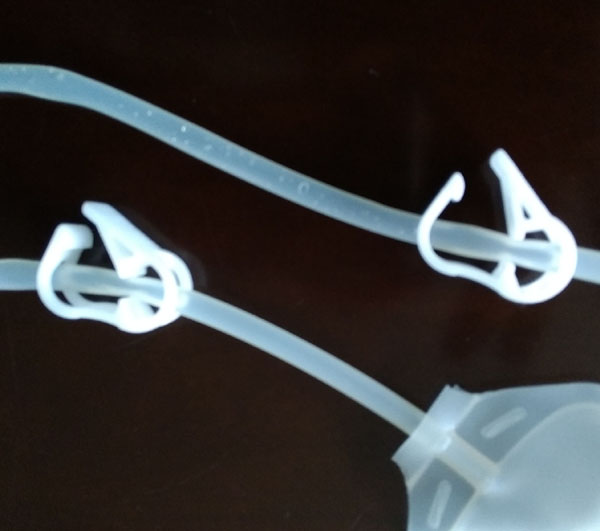

TUBING

•  Flexible and non kinking

•  Non sticking

•  Transparent

•  Leak proof

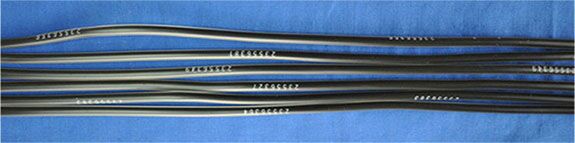

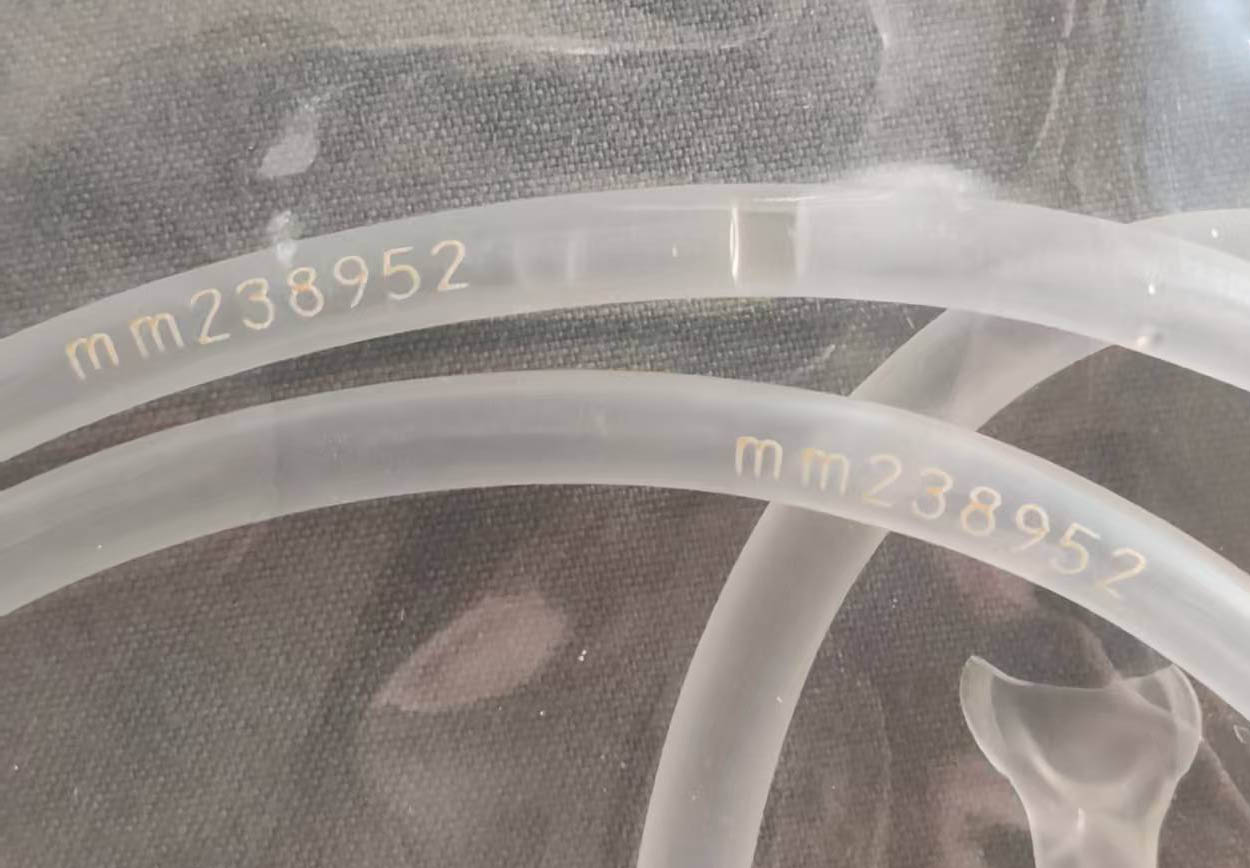

•  Tubing has same ID/segment number as that on the bag

•  The tubes has multiple printed ID/segment numbers

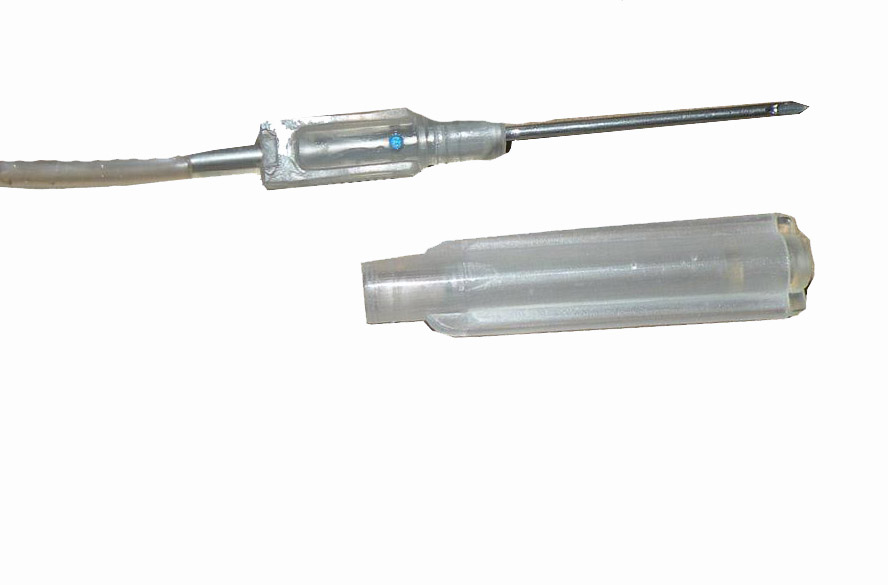

NEEDLE

•  16 gauge short bevel angled

•  Siliconized for maximum donor comfort

•  Rust proof

•  Tightly fixed with hub covered with sterile guard

•  Hermetically Sealed

 EXTERNAL PORT

•  Tamper proof and shouldn’t be recapped

•  Easily accessible

PACKAGING

•  Protective dual packaging [individual and aluminum] eliminating microbial contamination on surface maintaining thecontents of the bag.

•  Easy to handle.

ANTICOAGULANT

Each 100 ml CPD (U.S.P) contains:

 - Citric Acid (anhydrous)………………………………………….. 0.299g

 - Sodium Citrate (dehydrate)…………………………………… 2.63g

 - Monobasic Sodium Phosphate (monohydrate)…….. 0.222g

 - Dextrose (monohydrate)………………………………...………. 2.55g

 - Adenine……………………………………………………......…………… 0.0275g

Ifwith SAG-M, Each 100 ml SAG-M (U.S.P) contains:

 -  Dextrose (monohydrate) …………………………………….. 0.900 g

 - Sodium chloride…………………………………………....…….….. 0.877 g

 - Adenine………………………………………………………......….…….. 0.0169 g

 - Mannitol…………………………………………………….....……...…… 0.525 g

 -  Waterfor injection   q.s…………………………………….….. 100ml

•  Clear And colorless

•  No discoloration on storage at room temperature

•  Manufacturer to provide anticoagulant quality check certificate.

LABEL

•  Non peel off

•  Heat sealed labels

•  Remain attached between room temperature to80 c with a transparent adhesive

•  Label has printed manufacturing and expiry date and lot number of the bag

•  Expiry date  2 years from the date of sterilization

•  Label provides sections for recording donor number, collection and expiration date of blood, blood group and Rh factor,Serology test results and signature of attendant.

RESISTANCE TO DISTORTION

•  When filled to normal capacity the bag is able to  with stand accelerate of 500g  for 30 mins at temperature 40 to 24 ℃ without becoming permanently distorted or rupture.

•   The quadruple filter bags are able to withstand temperature up – 80℃ without breakage.

The blood bag manufacturing site has been engaged in the manufacturing since 1986, it has about 260 well trained workers and a strong professional technical and quality team. With modern and strict management, Laishi has became a reliable brand supplier for transfusion system in world transfusion industry. All the blood transfusion bags with or without leukocyte fitlers have passed strict TUV & GMP authentication system .
