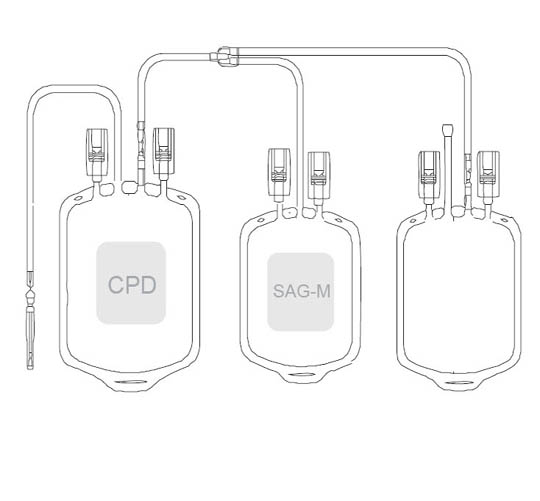

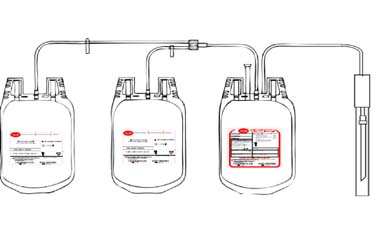

General Description of JT Triple blood transfusion system

◎ Designed for collection, storage, transfusion and transportation of human blood and its components.
◎ Manufactured from high quality medical grade plasticized DEHP PVC compatible with blood having properties such as non-toxicity,
transparency, flexibility, high tensile strength, heat and cold resistance.
◎ Ultra-thin walled 16G （or 17G) Venipuncture needle is optimal for reducing donor pain.
◎ Excellent twist-off needle cover makes the needle non-reusable.
◎ Highly flexible and kink-resistant blood collecting tube includes serial numbers for precise, easy identification
◎ The breakaway valve is designed for quick and easy opening of the fluid paths between bags.
◎ Safe and easy-to-open out-let port design provides protection from contamination.
◎ High quality, peel-resistant label provides convenient recording.
◎ Dual packaging (Individual & Aluminum) eliminates microbial contamination on the surface and maintains the content of anticoagulant
◎·Sterilized by steam in high pressure can assure products non-pyrogen and toxin-free.
◎ Extrusion type and roll welding type blood bags can satisfy different customers’ requirement.

DESIGN  ofTriple blood bag

•  No risk of contamination and airembolism [ closed system ] with all leak proof seals.

•  Slit on both sides of the bags are enough to accommodate 5-10 ml volume test tubes.

•  The capacity of the bag is enough to prevent any rupture of the bag from the seam when it is filled to the requisite volume of blood.

TUBING  of Triple blood bag

•  Flexible and non kinking

•  Non sticking

•  Transparent

•  Leak proof

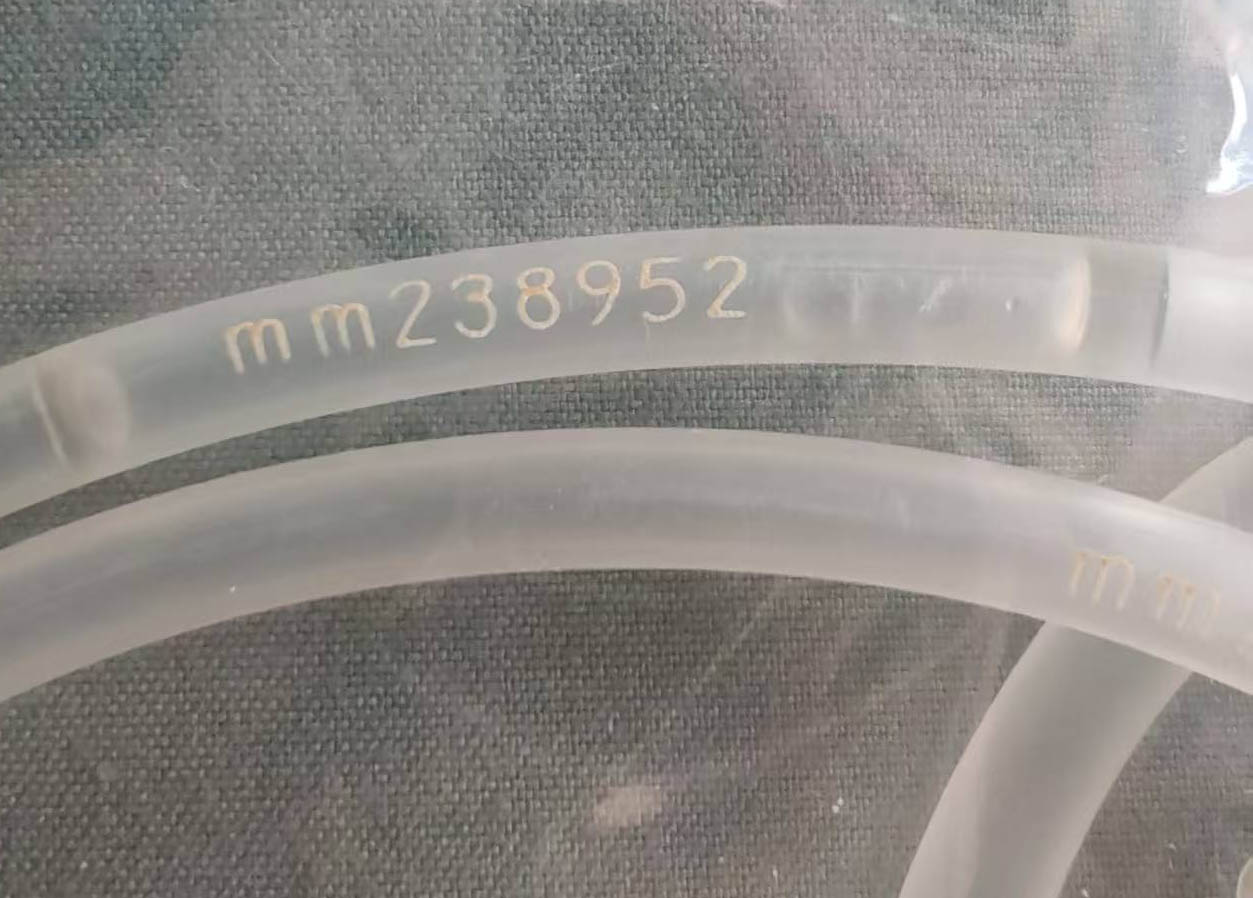

•  Tubing has same ID/segment number as that on the bag

•  The tubes has multiple printed ID/segment numbers

NEEDLE of  Triple blood bag

•  16 gauge short bevel angled

•  Siliconized for maximum donor comfort

•  Rust proof

•  Tightly fixed with hub covered with sterile guard

•  Hermetically Sealed

 EXTERNAL PORT

•  Tamper proof and shouldn’t be recapped

•  Easily accessible

PACKAGING

•  Protective dual packaging [individual and aluminum] eliminating microbial contamination on surface maintaining thecontents of the bag.

•  Easy to handle.

ANTICOAGULANT of Triple blood bag

Each 100 ml CPD (U.S.P) contains:

 - Citric Acid (anhydrous)………………………………………….. 0.299g

 - Sodium Citrate (dehydrate)…………………………………..… 2.63g

 - Monobasic Sodium Phosphate (monohydrate)…….............. 0.222g

 - Dextrose (monohydrate)………………………………...………. 2.55g

 - Adenine………………………………………………...…......…0.0275g

Ifwith SAG-M, Each 100 ml SAG-M (U.S.P) contains:

 -  Dextrose (monohydrate) ……………………………………..... 0.900 g

 - Sodium chloride…………………………………………....…….. 0.877 g

 - Adenine………………………………………………………...... 0.0169 g

 - Mannitol…………………………………………………….....….. 0.525 g

 -  Waterfor injection   q.s……………………………………....….. 100ml

•  Clear And colorless

•  No discoloration on storage at room temperature

•  Manufacturer to provide anticoagulant quality check certificate.

LABEL  of Triple blood bag

•  Non peel off

•  Heat sealed labels

•  Remain attached between room temperature to80 c with a transparent adhesive

•  Label has printed manufacturing and expiry date and lot number of the bag

•  Expiry date  2 years from the date of sterilization

•  Label provides sections for recording donor number, collection and expiration date of blood, blood group and Rh factor,Serology test results and signature of attendant.

RESISTANCE TO DISTORTION

•  When filled to normal capacity the bag is able to  with stand accelerate of 500g  for 30 mins at temperature 40 to 24 ℃ without becoming permanently distorted or rupture.

•   bags are able to with stand temperature up – 80℃ without breakage.

The blood bag manufacturing site has been engaged in the manufacturing since 1986, it has over 200 well trained workers and a strong professional technical and quality team. With modern and strict management,  we have become a reliable brand supplier for transfusion system in world transfusion industry. All the products have passed strict CE/MDD/MDR (TUV) & GMP authentication system .
