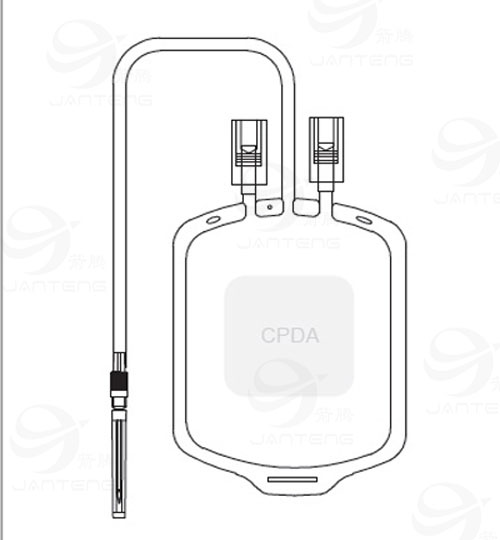

Specifications of Single Blood Bag System
◎ Designed for collection, storage, transfusion and transportation of human blood and its components.
◎ Manufactured from high quality medical grade plasticized DEHP PVC compatible with blood having properties such as non-toxicity,
transparency, flexibility, high tensile strength, heat and cold resistance.
◎ Ultra-thin walled 16G （or 17G) Venipuncture needle is optimal for reducing donor pain.
◎ Excellent twist-off needle cover makes the needle non-reusable.
◎ Highly flexible and kink-resistant blood collecting tube includes serial numbers for precise, easy identification
◎ The breakaway valve is designed for quick and easy opening of the fluid paths between bags.
◎ Safe and easy-to-open out-let port design provides protection from contamination.
◎ High quality, peel-resistant label provides convenient recording.
◎ Dual packaging (Individual & Aluminum) eliminates microbial contamination on the surface and maintains the content of anticoagulant
◎·Sterilized by steam in high pressure can assure products non-pyrogen and toxin-free.
◎ Extrusion type and roll welding type blood bags can satisfy different customers’ requirement.
◎ CPDA-1 (Citrate, Phosphate, Dextrose, Adenine)

Model/Code
Anticoagulant
Size
Needle
Rem
S250C
S250CX
CPDA-1 35ml
250ml
 16G needle

17G needle
Optional NP, SP, CT
S350C
S350CX
CPDA-1 49ml
350ml
S450C
S450CX
 CPDA-1 63ml
450ml
S500C
S50CX
 CPDA-1 70ml
500m


NEEDLE of single blood transfusion system
◆  Covered  with protective  plastic
◆  16-G  ultra thin walled sharp needle( or 17G as customized)
◆  The needle bevel (< 0.5 cm) is oval split to maximise easy insertion into a donor arm.
◆  Oval shape allows sufficient needle point that allows sharp entry into a vein.

Specifications of needle Pilot tube
◆   Pilot tube length is 90-120cm( Optional choice as per requirement)
◆   Each tube imprinted with a unique pilot tube number for batch tracing
◆   No air bubbles in the fluid path
◆   Made of flexible and sealable material

Medical PVC bag design
◆   Round shaped with round edges, no sharp corners
◆   Made of medical grade PVC materials that provide high ventilation with CE certification whilst maintaining
in-vivo conditions
◆  Leak proof design,no risk of contamination and air embolism [ closed system ] with all leak proof seals.
◆  Simple bend of the connector tube allows blood components to be transferred smoothly into the satellite bags
◆   Flow clamps in tube ( 1~ 4 clamps as per requirement)
◆   Each bag have hanger slits on every sides for use during collection, processing and transfusion
◆  Optional sampling collection pouch and blood collection tube is attached or not as per requirement.

Specifications of Label design
◆   None peel-off even if soaked overnight in water
◆   Heat sealed labels
◆   Clearly marked with “sterile, non-pyrogenic and non-toxic”
◆   Clearly indicating volume and constituents of anti-coagulant
◆   Clearly indicating volume size of blood capacity (450ml)
◆   Clearly indicating manufacturing date, expiry date and batch(Lot)No.
◆   Clearly indicating manufacturer’s and exporter's name and address.
     Optional indicating local distributor or importer's name and address details.
◆  Label provides sections for recording donor number, blood group and Rh factor, Serology test results and signature of attendant.


Internationally recognized quality Standards
◆  The blood bag sets are  approved as per GB, CE(TUV)/MDD/MDR, ISO13485( TUV), ISO3826, GMP (CFDA/MPA)

PACKAGING
◆   Protective dual packaging [individual and aluminum] eliminating microbial contamination on surface maintaining thecontents of the bag.
◆   Easy to handle.

ANTICOAGULANT of  blood bags
Each 100 ml CPDA-1 [U.S.P] contains:
 -  Citric Acid (anhydrous)……………………………………….......… 0.299g
 -  Sodium Citrate (dehydrate)……………………………….......…..2.63g
 -  Monobasic Sodium Phosphate (monohydrate)…......…..0.222g
 -  Dextrose (monohydrate) ……………………………….........……… 3.19g
 -  Adenine ……………………………………………………………..............…..0.0275g
Water for injection, sufficient quantity to make…………100ml
•  Clear And colorless
•  No discoloration on storage at roomtemperature
•  Manufacturer to provide anticoagulant qualitycheck certificate.

RESISRANCE TO DISTORTION
•  When filled to normal capacity the bag is able to  with stand accelerate of 500g  for 30 mins at temperature 40 to 24 ℃
without becoming permanently distorted or rupture.
•   bags are able to with stand temperature up – 80℃ without breakage.
The blood bag manufacturing site has been engaged in the manufacturing since 1986, it has about 260 well trained workers
and a strong professional technical and quality team. With modern and strict management, we have become a reliable brand
supplier for transfusion  system in world transfusion industry. All the products have passed strict CE/MDD/MDR & GMP authentication system .

◆  Tamper proof needle with an indicator that allows one to instantly confirm that the needle protector has not been removed.
